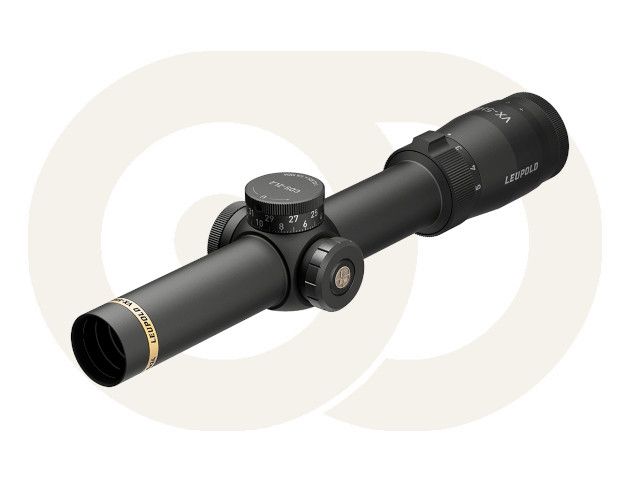

VX-5HD 1-5X24 | CDS-ZL2 | FireDot Duplex | Illuminated
[Code: 12221]
The VX-5HD defines relentless versatility. Its wide magnification ranges give hunters and shooters the ability to adapt to any environment. Built around Leupold’s Professional-Grade Optical System, it offers unmatched light transmission that’s designed to outperform in the most challenging lighting conditions. Its industry leading glare reduction provides a clear image in harsh, direct light, while the resolution and clarity will meet the demands of any professional guide or shooter in the field. And when it’s time to pull the trigger, you’ll want the accuracy and additional elevation that the CDS® ZeroLock® 2 dial delivers.
Specifications
| Battery Type |
CR2032
|
| BDC Dial Included |
No
|
| Custom Dial Compatible |
Yes
|
| Daylight Bright Illumination |
Yes
|
| Custom Dial System (CDS) |
Yes
|
| Elevation Adjustment Type |
CDS-ZL2
|
| Electronic Reticle Level |
No
|
| Light Management System |
Professional-Grade Optical System
|
| Locking Dial |
Yes
|
| Magnification Type |
Variable
|
| Nightvision Compatible Illumination |
No
|
| Reticle Focal Plane |
Second Focal Plane
|
| Revolution Indicator |
Yes
|
| Reticle |
Illum. FireDot Duplex
|
| Rezero Type |
Set Screw
|
| Reticle Type |
Illuminated
|
| Adjustable Objective |
No
|
| Side Focus |
No
|
| Switch Type |
Push Button
|
| Windage Adjustment Type |
Pop-Up Rezero
|
| Weight (oz) |
14.7
|
| Elevation Adjustment Value per Click |
1/4MOA
|
| Elevation Adjustment Range (MOA) |
170
|
| Elevation Adjustment Range (MIL) |
49
|
| Elevation Adjustment Range (cm @ 100m) |
495
|
| Elevation Adjustment Per Revolution |
20 MOA
|
| Elevation Dial Travel Limit |
38MOA
|
| Windage Adjustment Value per Click |
1/4MOA
|
| Windage Adjustment Range (MOA) |
170
|
| Windage Adjustment Range (MIL) |
49
|
| Windage Adjustment Range (cm @ 100m) |
495
|
| Windage Adjustment Per Revolution |
15 MOA
|
| Magnification Max |
5
|
| Magnification Min |
1
|
| Objective Lens Diameter (mm) |
24
|
| Linear FOV Low Mag (ft@100yds) |
120.9
|
| Linear FOV High Mag (ft@100yds) |
22
|
| Angular FOV Low Mag (Degrees) |
22.8
|
| Angular FOV High Mag (Degrees) |
7.7
|
| Eye Relief Low Mag (in) |
3.7
|
| Eye Relief High Mag (in) |
3.8
|
| Fixed Parallax-Free Distance (yd) |
150
|
| Battery Life (hr), Low Intensity |
1600
|
| Battery Life (hr), Medium Intensity |
1000
|
| Battery Life (hr), High Intensity |
300
|
| Number of Illum Settings |
8
|
Ask information about VX-5HD 1-5X24 | CDS-ZL2 | FireDot Duplex | Illuminated
