6-36x56 CM II HP LPI | CW | DTII+ / STII | TR²ID Reticle
[Code: 16A.432.M3I6]

6-36x56 CM II HP LPI | CW | DTII+ / STII | TR²ID Reticle
6-36x56 CM II HP LPI | CW | DTII+ / STII | TR²ID Reticle 6-36x56 CM II HP LPI | CW | DTII+ / STII | TR²ID Reticle

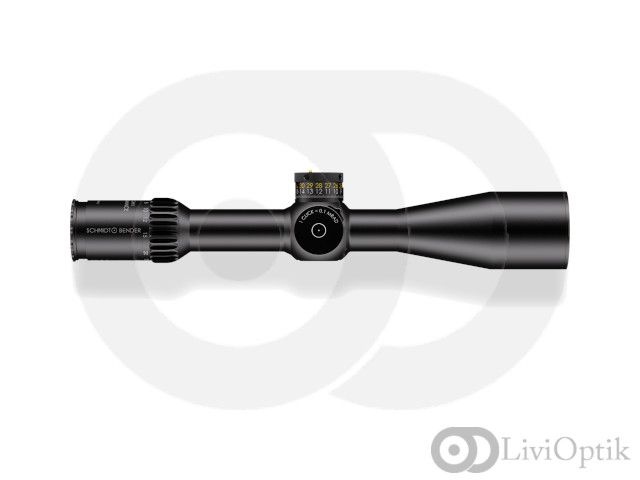

The 6-36x56 CM II High Performance is the revolution of the 5-25x56 CM II riflescope legend. With this development, the enormous performance of the 5-25x56 CM II has been clearly surpassed. It scores with the performance of a sniper riflescope from medium to extremely long range.
No other riflescope in its class offers a larger field of view. Even at 6x magnification, it surpasses the fields of view of most 5-25x riflescopes on the market. In addition to the field of view, the outstanding resolution for target recognition beyond the 4,000 m mark is also impressive. The coating technology patented by Schmidt & Bender guarantees a transmission of well over 90 %. Due to its compact design and extremely low weight, the 6-36x56 CM II High Performance is the lightest riflescope in its class. At the same time, it impresses with the robustness typical of Schmidt & Bender.
It has a large internal travel of over 40 mrad. Equipped with the new ‘LPI’ (illuminated parallax integrated), it offers more mounting options and is also comfortable to use for left-handed shooters. With this performance, it offers the new benchmark for static and dynamic disciplines such as PRS and ELR. In addition to competition reticles, the DTII+ and MTII turrets – which are optimized for competition – are also available.


Magnification
6-36
Objective diameter (mm)
56
Exit pupil-Ø (mm)
8.3–1.6
Field-of-view (m/100 m)
7.3–1.3
Eye relief distance (mm)
90
Twilight factor
17.3-44.9
Diopter adjustment (dpt)
-3 to +2
Length (mm)
390
Weight (g)
980
Mount system
Ring mount
Main tube-Ø (mm)
34
Parallax adjustment (m)
20 to ∞
Reticles
P5FL-GR²ID-TR²ID-M1FL
Focal Plane
1
Illumination
11 settings
Turrets (Elevation /Windage)
DT II+ MTC LT /
ST II ZC LT
MT II MTC LT /
DT II+ ZC LT
Turret rotation
cw/ccw
Click value
0.1 MRAD
0.5 cm/100 m
Adjustment range elevation
30.5 MRAD
395 cm/100 m
Adjustment range windage
± 6 MRAD
± 65 cm/100 m
Internal travel elevation
41 MRAD
410 cm/100 m
Internal travel windage
21 MRAD
210 cm/100 m
