1-8x24 ShortDot DUAL CC | CW | ST / ST | MDR Reticle
[Code: 683.44E.K1H1]
This is a most technically advanced riflescope, since the 1-8x24 PM II ShortDot Dual CC combines – in an 8x zoom ratio system – a distinct illuminated red dot in Second Focal Plane with a First Focal Plane tactical reticle. This being said, it can be used as a red dot sight for quick engagement of close targets while the MilDot base reticle can be used for accurate ranging and compensation for hold-offs and hold-under/over. The generous eye box/exit pupil supports fast acquisition on any magnification. These combined features create the most advanced multipurpose Close Combat and mid-range riflescope design.
| Magnification |
1–8
|
| Exit pupil-Ø (mm) |
9,8–3,0
|
| Field-of-view (m/100 m) |
35,3–4,9
|
| Length (mm) |
293
|
| Weight (g) |
635
|
| Mount system |
Ring mount
|
| Main tube-Ø (mm) |
30
|
| Parallax adjustment (m) |
100 fix (7 m in CC-Mode)
|
| Reticles |

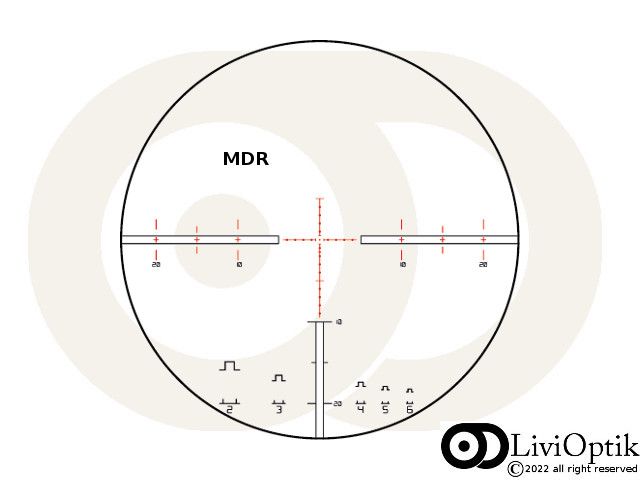

MDR, MDR-T6
|
| Focal Plane |
1 + 2
|
| Illumination |
6 settings red dot/
6 settings reticle
|
| Turrets (Elevation /Windage) |
ST MTC LT /
ST ZC LT
|
| Turret rotation |
cw/ccw
|
| Click value |
0.1 MRAD
|
| Adjustment range elevation |
12 MRAD
|
| Adjustment range windage |
± 6 MRAD
|
| Internal travel elevation |
23 MRAD
|
| Internal travel windage |
23 MRAD
|
