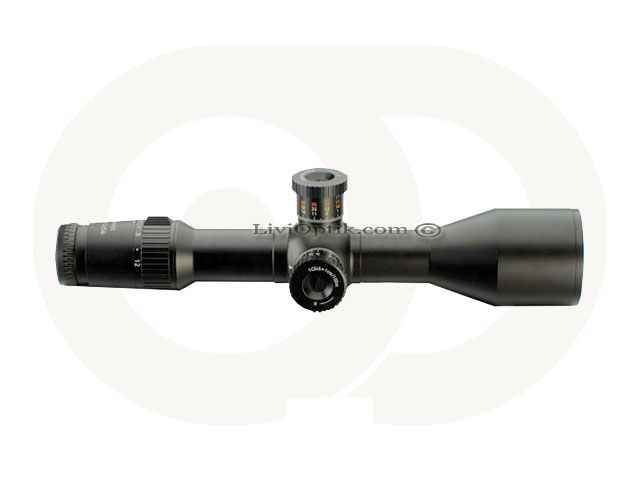

ZF 3-12X56 | MilDot | FF/SF
[Code: 10139087]

ZF 3-12X56 | MilDot | FF/SF
ZF 3-12X56 | MilDot | FF/SF ZF 3-12X56 | MilDot | FF/SF ZF 3-12X56 | MilDot | FF/SF

Click here to get a quote

When using a telescopic sight with a night-vision attachment, every centi-metre counts depending on the assem-bly options on the weapon. Therefore, our objective during development of the 3 – 12 x 56 telescopic sight was to deliver maximum performance while maintaining a short optical system.

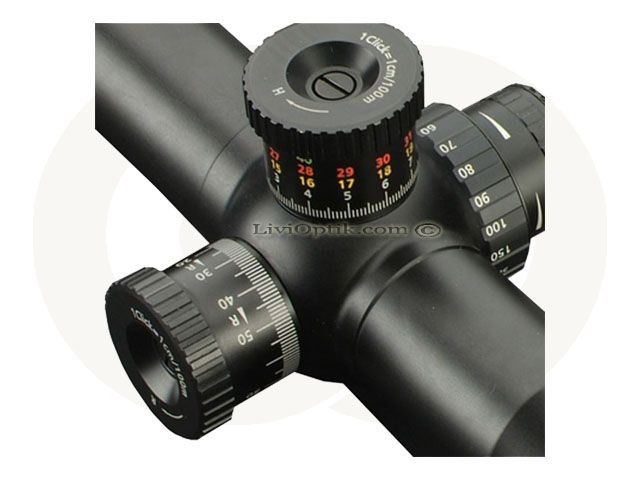

In addition to a compact design, the adjustment range of the elevation turret also sets new standards. The 3 – 12 x 56, for example, provides an adjustment range of 400 cm at 100 m.

Very compact design
High adjustment ranges
Reticles in the first or second focal plane

Optical data

Product
3 -12x 56 SF
3 -12x 56 FF
Magnification
3 - 12 x
Exit pupil
Ø 14.9 - 4.6 mm
Fields of view (at 1000 m)
120 - 34 m
117 - 34 m
Dioptre adjustment
-2.5 to +2 dpt
Transmission
approx. 91%
Elevation/azimuth click stops
0.1 mrad (1 cm/100 m)
Max. elevation adjustment range
400 cm / 100 m
300 cm / 100 m
Max. azimuth adjustment range
±50 cm / 100 m
Parallax compensation
50 to ∞ m
Reticle
2nd image plane
1st image plane
Electrical data

Reticle illumination
red
Automatic reticle illumination shut off
after 3 hours
Low battery display
optical, illuminated reticle pulses after it is turned on
Power supply
3 V CR 2032 to -20°C button cell; alternatively: 3 V BR 2032 to -40°C
Mechanical data

Dimensions (L x W x H )
325x 94x 77 mm
Ring diameter (assembly)
34 mm
Weight
800 g
Ambient conditions

Environmental test
MIL-STD-810G, DIN ISO 9022 (excerpt)


Accessories:
Screwable ARD
Clampable ARD
Polarizing filter
Screwable Sunshade
Clampable Sunshade
Eyeguard
Yellow Filter
