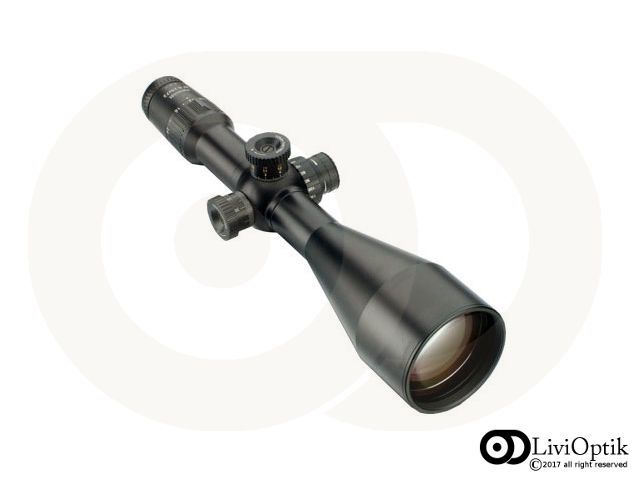

ZF 6-24X72 | MilDot | SF
[Code: 10139110]

ZF 6-24X72 | MilDot | SF
ZF 6-24X72 | MilDot | SF ZF 6-24X72 | MilDot | SF

Click here to get a quote

The lens diameter considerably ­influences the optical capabilities of a telescopic sight. With increasing magnification, the brightness of the scene diminishes. This factor plays a key role in the military, in particular, where long ranges are common. Under adverse weather conditions such as ­precipitation, twilight and haze, high magnification often leads to unwanted results.
Therefore, we have limited our 6x to 24x telescopic sights to a magnification range that is both beneficial and noticeable to the user and combined it with a 72 mm lens.
The 6–24x72 is the right telescopic sight when extremely precise adjustability and very high magnification are required.

Extended magnification range
2nd focal plane reticle
72 mm lens diameter for maximum light intensity

Optical data

Magnification
6 x - 24 x
Objective Lens Diameter, mm
72
Exit pupil
12.0 to 3.0 mm
Fields of view (at 1000 m)
61 - 17 m
Dioptre adjustment
-2.5 dpt to +2 dpt
Transmission
approx. 90%
Elevation/azimuth click stops
0.1 mrad (1 cm / 100 m)
Max. elevation adjustment range
200 cm / 100 m
Max. azimuth adjustment range
±50 cm / 100 m
Parallax compensation
50 m to ∞ m

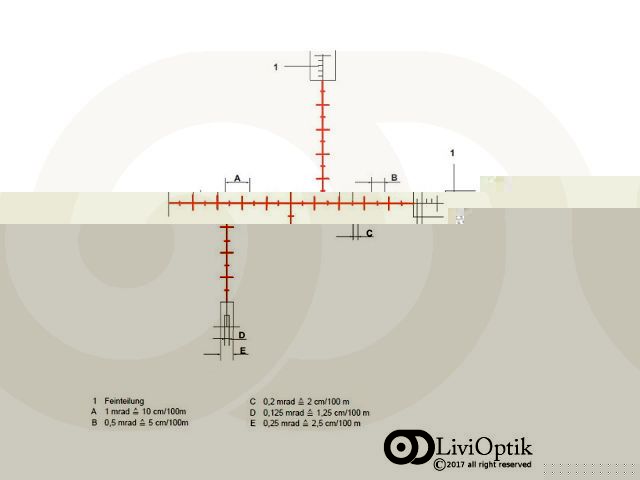

Reticle
2nd image plane
Electrical data

Reticle illumination
red
Automatic reticle illumination shut off
after 3 h
Low battery display
optical, illuminated reticle pulses
after it is turned on
Power supply
3 V CR 2032 to -20°C button cell;
alternatively: 3 V BR 2032 to -40°C;
Mechanical data

Dimensions (L x W x H )
380 x 94 x 87 mm
Ring diameter (assembly)
34 mm
Weight
1100 g
Ambient conditions

Environmental test
MIL-STD-810G, DIN ISO 9022 (excerpt)
