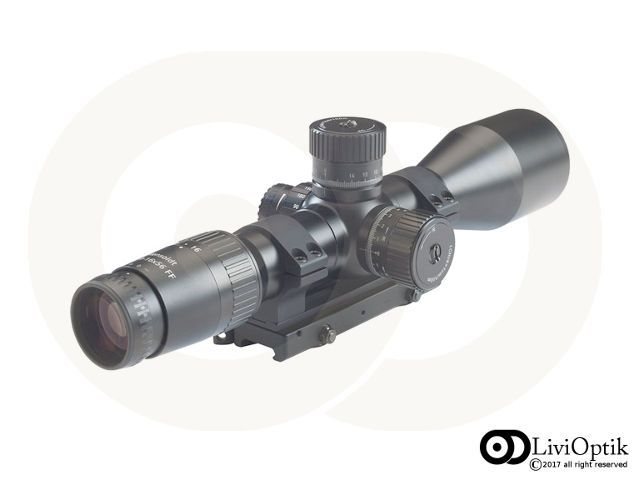

ZF 4-16X56 | MilDot | FF | LT
[Code: 10214529]

ZF 4-16X56 | MilDot | FF | LT
ZF 4-16X56 | MilDot | FF | LT ZF 4-16X56 | MilDot | FF | LT ZF 4-16X56 | MilDot | FF | LT

The rede-signed turrets are self-locking, i.e. un-intentional adjustment of the reticle is not possible.
The elevation turret provides ballis-tic compensation of 14.5 mrad (145 clicks) in one revolution. Due to a total adjustment range of 22 mrad the user has sufficient reserves for zeroing. Us-ers can specify themselves if the turret stops at 0 or at 5, for example.


Magnification: 4 – 16x
Elevation clicks: 145 – single turn
Overall length: 334 mm
Special features: locking turrets, zero-stop

Specification

Magnification
4x–16x
Objective Lens Diameter, mm
56
Field of View (FOV) @ 1000m, m
87–25
Exit Pupil, mm
14.0–3.5
Tube Diameter, mm
34
Transmission, %
approx. 92
Impact Point Correction
.1 mrad (1 cm @ 100 m)
Max. Adjustment Path (Elevation/Azimuth),  m/100 m
224 / ± 50
Parallax Compensation, m
50 to infinity
Reticle Image Plane
First Focal
Reticle Illumination
Red
Automatic Reticle Illumination Shut/Off
After 3 hours
Low Battery Display
Optical, after activation of
reticle illumination
Power Supply
3 V CR 2032 to –20°C button cell;
alternatively: 3 V BR 2032 to –40°C;
Dimensions (L x W x H), mm
334 x 104x 86
Weight, g
900





Buy also a special accessory for ZF 4-16X56 | MilDot | FF | LT

Yellow Filter

Yellow Filter

Yellow Filter

Yellow Filter Chiudi il popup
Price: 185,00 €

Polarizing filter

Polarizing filter

Polarizing filter

Polarizing filter Chiudi il popup
Price: 185,00 €

Eye Guard

Eye Guard

Eye Guard

Eye Guard Chiudi il popup
Price: 30,00 €

Clampable ARD | 56mm

Clampable ARD | 56mm

Clampable ARD | 56mm

Clampable ARD | 56mm Chiudi il popup
Price: 259,01 €

Screwable ARD | 56mm

Screwable ARD | 56mm

Screwable ARD | 56mm

Screwable ARD | 56mm Chiudi il popup
Price: 179,00 €

Clampable Sunshade | 56mm

Clampable Sunshade | 56mm

Clampable Sunshade | 56mm

Clampable Sunshade | 56mm Chiudi il popup
Price: 199,99 €

Screwable Sunshade | 56mm

Screwable Sunshade | 56mm

Screwable Sunshade | 56mm

Screwable Sunshade | 56mm Chiudi il popup
Price: 59,00 €
Price: 3.985,00 €
