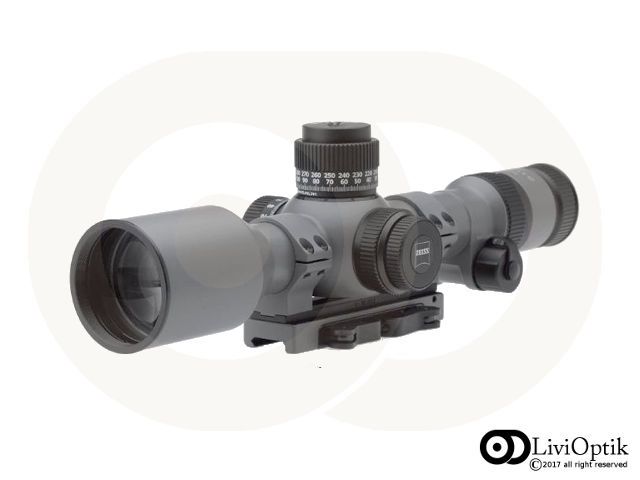

ZF 3.5-26x56 | FFP | Tremor3 Reticle
[Code: 10282265]

ZF 3.5-26x56 | FFP | Tremor3 Reticle
ZF 3.5-26x56 | FFP | Tremor3 Reticle ZF 3.5-26x56 | FFP | Tremor3 Reticle ZF 3.5-26x56 | FFP | Tremor3 Reticle

Click here to get a quote

The enormous adjustment ranges, which also enable ballistic compen-sation at maximum range, are unique. The elevation turret provides 36 mrad
(360 clicks) over two noticeable ro-tations. To simplify use in all climate zones, the turret does not stop at 0, but continues to -5, resulting in a total of 365 clicks! The length of the system is particularly important for the use of night sight devices, an area where this telescopic sight is in a class of its own.

Extended magnification range
Extremely high adjustment range
Short design

Optical data

Magnification
3.5 x - 26 x
Exit pupil
9.6 to 2.2 mm
Fields of view (at 1000 m)
101 to 14 mm
Dioptre adjustment
-2.5 to +2 dpt
Transmission
approx. 90%
Elevation/azimuth click stops
0.1 mrad (1 cm / 100 m)
Max. elevation adjustment range
400 cm / 100 m
Max. azimuth adjustment range
±100 cm / 100 m
Parallax compensation
50 to ∞ m
Reticle
1st image plane
Electrical data

Reticle illumination
red
Automatic reticle illumination shut off
after 3 hours
Low battery display
optical, illuminated reticle pulses after it is turned on
Power supply
CR 123A
Mechanical data

Dimensions (L x W x H )
360 x 110 x 95 mm
Ring diameter (assembly)
36 mm
Weight
1300 g
Ambient conditions

Environmental test
MIL-STD-810G, DIN ISO 9022 (excerpt)


Accessories:
Screwable ARD
Clampable ARD
Polarizing filter
Screwable Sunshade
Clampable Sunshade
Eyeguard
Adapter Eyeguard ring
Yellow Filter



Price: 0,00 €

Ask information about ZF 3.5-26x56 | FFP | Tremor3 Reticle
