SPOTTER LRF | 2.000 m
[Code: SPTRLRF]

SPOTTER LRF | 2.000 m
SPOTTER LRF | 2.000 m SPOTTER LRF | 2.000 m SPOTTER LRF | 2.000 m

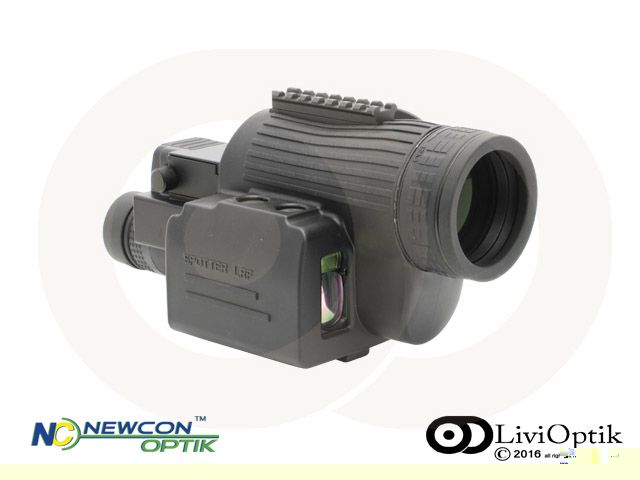

The SPOTTER LRF is the first of its kind—a combined spotting scope/laser rangefinder system. It makes it faster, easier and more accurate than ever before to acquire range, inclination and azimuth data on long distance targets.
This model is built to MIL-STD-810G standards and is fully ruggedized to handle real-world military deployment. With 15-45x variable magnification, fully multi-coated optics, an etched mil-dot reticle, USB output and LED display, the SPOTTER LRF is among the most versatile optics you can bring with you to the field. This model is compatible with an AndroidTM – based application and other peripheral devices.

2,000 or 3,000 metre range
Distance, Azimuth and Elevation measurements
Measurements between two objects
Precise GPS Location

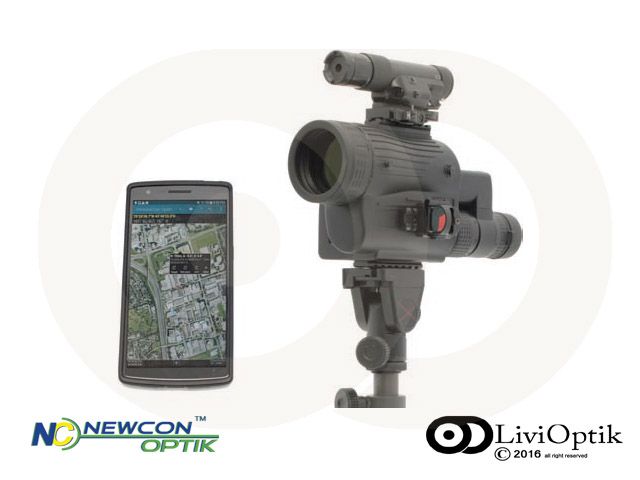

Android Compatible


Magnification (x)
15x – 45x
Objective lens (mm)
60
Exit pupil diameter (mm)
4.17 – 1.34
Eye relief (mm)
25 – 26
Field of view (°)
3.4 (15x) -1.2 (45x)
Axial resolution (center), (arcsec)
3.0
Diopters adjustment range, dpt
± 5
Laser Rangefinder
Eye safety
Class 1, eye safe
Wavelength (nm)
905
1550
1064 nm laser protection
Optional
Specified Measuring range (m)
10 – 2,000
10 – 3,000
Display
Aiming reticle type
Etched reticle (MIL Dot)
Display type
Customized matrix OLED
Display brightness control
Manual (8 levels)
Mechanical, Electronics and Environmental
Dimensions (mm)
280x140x105
Weight with battery (g)
1,590
Operational temperature (°C)
-35 to +55
Storage temperature (°C)
-45 to +65
Waterproof
1m/30min
Environmental conditions
MIL-STD-810G
Tripod mounting pad
Yes
3-axis digital compass
Yes
Internal power supply
2x CR123 Lithium
Battery life (# of measurements)
5000
Nitrogen filled
Yes

Buy also a special accessory for SPOTTER LRF | 2.000 m

Newcon Communication cable for Android based smart devices

Newcon Communication cable for Android based smart devices

Newcon Communication cable for Android based smart devices

Newcon Communication cable for Android based smart devices
Bluetooth accessory for wireless communication with CI model and LRB
