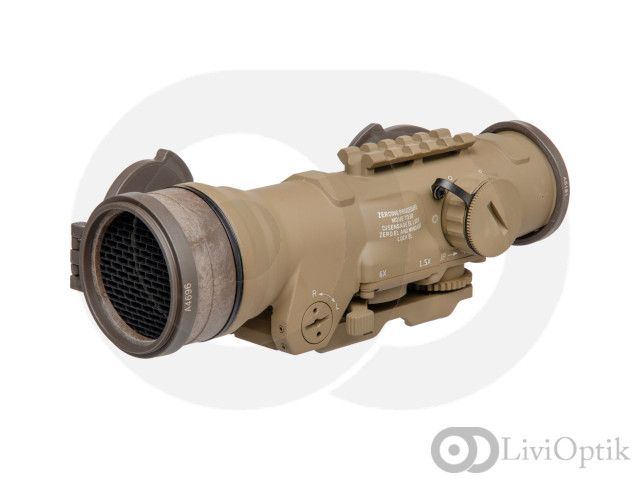

SpecterDR™ 1.5x-6x | 5.56 NATO | CX5455 reticle | FDE
[Code: DFV6.T265C10]
The ELCAN SpecterDR 1.5x/6x comes equipped with integrated Picatinny rails, ambidextrous magnification throw levers, improved battery covers, and hard-wearing CERAKOTE® performance finishes in Black or Flat Dark Earth (FDE).
The ELCAN SpecterDR 1.5x/6x is the second evolution in the family of Dual Role Optical Sights. Based upon the battle-proven SpecterDR design, the SpecterDR 1.5x/6x provides higher magnification to enable greater precision and longer engagement ranges, while at the same time providing exceptional field of view in CQB mode.
The ELCAN SpecterDR 1.5x/6x is the second evolution in the family of Dual Role Optical Sights. Based upon the battle-proven SpecterDR design, the SpecterDR 1.5x/6x provides higher magnification to enable greater precision and longer engagement ranges, while at the same time providing exceptional field of view in CQB mode.
| Magnification |
6x / 1.5x
|
| Length |
183mm nominal
|
| Width |
69mm nominal
|
| Height |
73mm nominal
|
| Weight |
715g nominal
|
| Reticle |
Dual-thickness ballistic crosshair with user-selectable
red dot and VSOR rangefinder
|
| Aiming Dot diameter |
1.5 MoA @ 6x, 6 MoA @ 1.5x
|
| Ballistic correction: |
|
| DFOV156-C1: |

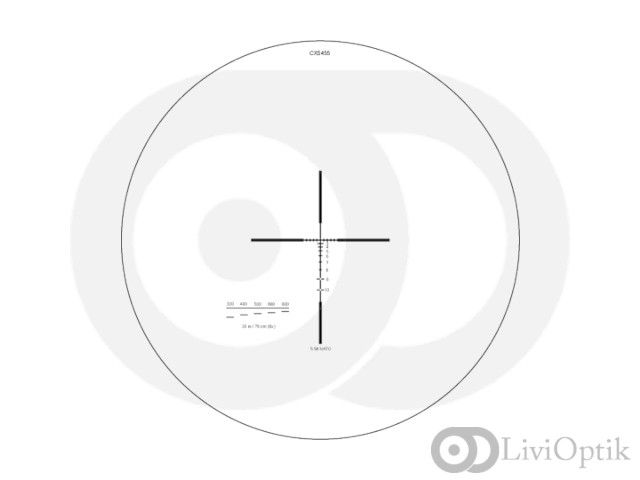

CX5455 reticle: 100-1000m for 5.56 NATO
|
| DFOV156-C2: |
CX5456 reticle: 100-1000m for 7.62 NATO
|
| CQB offset |
<44mm @ 60m
|
| Field of View |
16 deg @ 1.5x, 4 deg @ 6x
|
| FoV @ 6x |
7 m @ 100 m (21 ft @ 100 yds)
|
| FoV @ 1.5x |
28.7 m @ 100 m (86 ft @ 100 yds)
|
| Illumination source |
Battery-powered LED
|
| Crosshair illumination |
5 settings, AN/PVS-22 night vision compatible
|
| Red Dot illumination |
5 settings, AN/PVS-22 night vision compatible
|
| Eye Relief |
70 mm
|
| Entrance pupil |
42mm
|
| Exit pupil |
7mm
|
| Nominal focus |
300m @ 6x, 105m @ 1.5x
|
| Fixed focus range |
20m to infinity
|
| Battery type |
CR2032 (3v Lithium)
|
| Battery life |
382hrs on max RD/reticle setting, 1730hrs on second highest RD setting, 1208 hrs on second highest reticle setting
|
| Exterior finish |
CERAKOTE® performance finish in Black or
Flat Dark Earth (FDE)
|
| Adjustment resolution |
0.5 minute of angle
|
| Adjustment range |
120 minutes of angle
|
| Base requirement |
Mil-Std-1913 ?Picatinny Rail? (Weaver compatible)
|
| Attachment |
ARMS Levers
|
| Shockproof: |
450 g's
|
| Available accessorys |
ARD (Anti-Reflection Device) Flip Covers
|
Optional Accessories:
XOPTEK™ Micro Reflex Sight
Tenebraex Scope Clear Cover fits the Ocular and Objective side
Tenebraex Scope Amber Cover fits the Ocular and Objective side
Tenebraex Scope Cover fits the Ocular and Objective side
Tenebraex ARD
Ask information about SpecterDR™ 1.5x-6x | 5.56 NATO | CX5455 reticle | FDE
