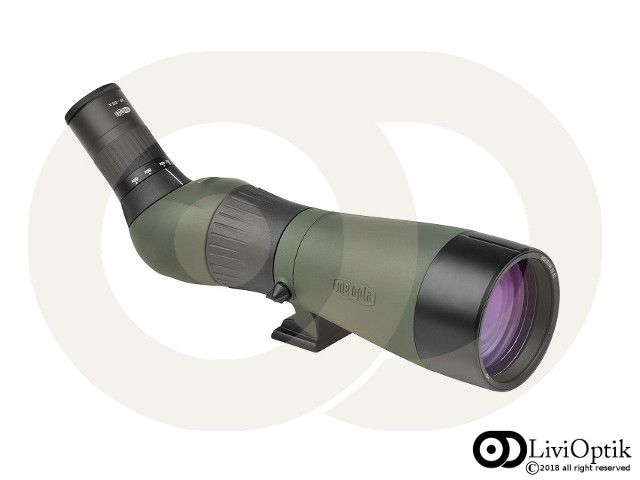

MeoStar S2 APO-HD | 20-70x82 | Angled
[Code: 421352.54]
Features
MeoBright 5501
MeoShield
MeoDrop
HD Lens Elements
CentricDrive
S2 Eyepieces
Bayonet Eyepiece Mount
Tripod Collar and Mount
Integrated Sun Shade
Chassis Construction .
Lens Components
Prism System
Waterproof
Fogproof
30 Years Transferable Warranty
MeoShield
MeoDrop
HD Lens Elements
CentricDrive
S2 Eyepieces
Bayonet Eyepiece Mount
Tripod Collar and Mount
Integrated Sun Shade
Chassis Construction .
Lens Components
Prism System
Waterproof
Fogproof
30 Years Transferable Warranty
| Objective lens (mm) |
82
|
| Field of View w/ 30-60x WA (°) |
2,55-1,2
|
| Field of View w/ 20-70x (°) |
2,35-0,93
|
| Eye relief (mm) |
18
|
| Close focus (m) |
4,1
|
| Dioptric correction (D) |
-3/+3
|
| Optical Elements () |
7/5
|
| Objective Filter Thread () |
no
|
| Tripod thread () |
1∕4-20
|
| Lenght without eyepiece - straight/angled (mm) |
340
|
| Weight w/o Eyepiece (g) |
1430
|
| Operating Temperature (°C) |
-25 / +55
|
| Storage Temperature (°C) |
-40 / +70
|
| Submersion Tightness (m) |
2
|
| Daylight Transmission - typical (%) |
92
|
| Twilight Transmission (%) |
88
|
