NVM-1226 | G2+ | Echo series
[Code: 1226.2]
Key Features:
Compact, lightweight, rugged
Hands-free operation
Integrated IR Illuminator

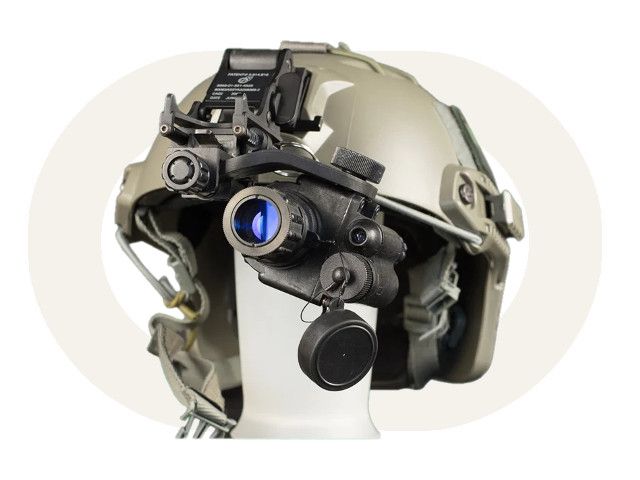

Head, helmet or weapon mountable
Ergonomic design
Automatic brightness control
Automatic cut-off when tilted in vertical position
Photo and video equipment adaptable
Water-, corrosion- and dust-resistant
|
IIT
|
AutoGated
|
White Phosphor
|
lp/mm
|
FOM
|
Gen.
|
| G2+ |
Optional
|
Optional
|
>60
|
|
2+
|
|
40
|
|
||||
| Echo |
Included
|
Optional
|
-
|
1600
|
-
|
| Echo+ |
-
|
2000
|
Specifications:
| Image Intensifier Tube |
Gen 2+
|
| Magnification |
1x
|
| Field of View |
40°
|
| Lens System |
26 mm; F/1.2
|
| Focus Range |
0.25 m to infinity
|
| Diopter Adjustment Range |
from -4 to +5
|
| Infrared Illuminator |
Build-in
|
| Detection Range, approx |
275 - 300 m
|
| Recognition range, approx |
175 - 225 m
|
| LED indicators |
YES
|
| Battery Type |
One 1.5 V AA
|
| Battery Life (operating) |
Up to 40 hours at 20°C
|
| Operating Temperature |
From -40°C to +50°C
|
| Environmental Rating |
IPX6
|
| Impact-Resistant |
YES; drop-test 1m
|
| Dimensions (L x W x H) |
115 x 79 x 56 mm
|
| Weight |
365 g
|
INCLUDED ACCESSORIES
Head mount
Helmet mount
Weapon mount
Sacrificial window
Neck cord
J-Arm mount adapter
Soft carry case
Optional Accessories:
Objective magnifier lenses (3x, 4x, 6.6x)
OTIS lens swabs
Lens cleaning kit
Hard Waterproof Case
Ask information about NVM-1226 | G2+ | Echo series
