LUX-14 | G2+ | G3 | Echo series | 4G series
[Code: LX14.NVM]

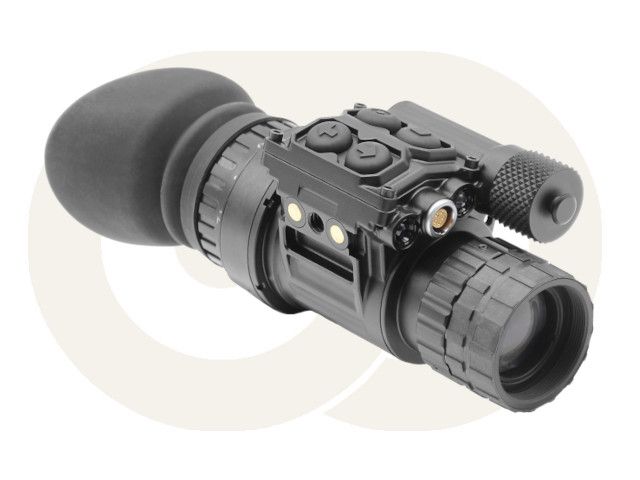

LUX-14, the pinnacle of cutting-edge night vision technology designed specifically for elite military and law enforcement operations. This advanced monocular is purpose-built to meet rigorous MIL-SPEC standards, ensuring unparalleled performance in the most demanding environments.
Equipped with state-of-the-art digital push button controls, the LUX-14 allows seamless operation even while wearing tactical gloves. Its compact and lightweight design makes it the smallest and lightest monocular in its class, weighing a mere 250 grams with 18mm gold standard tubes. Despite its diminutive size, the LUX-14’s nitrogen purged fully aluminum housing guarantees exceptional durability and reliability, withstanding the harshest weather conditions.
Ergonomic and Tactile Push-Button Controls
Stow Safety and Flip-Up-Off Features
Exceptional Situational Awareness

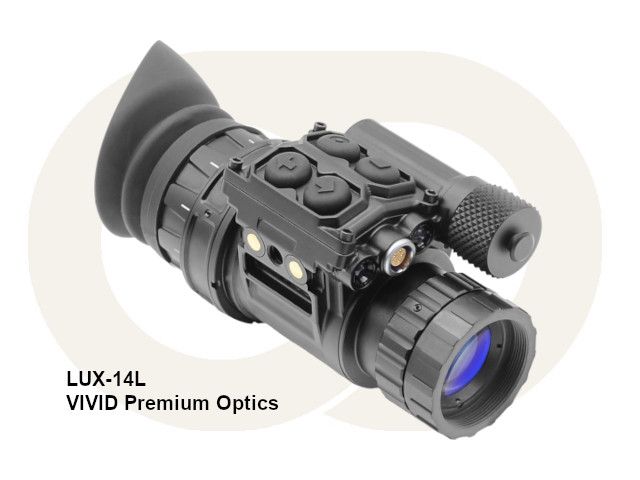

GSCI-VIVID Premium Optics Upgrade (LUX-14L)
Extended Range Observation
Rugged Aluminum Enclosure
Ultra-Lightweight and Compact
|
IIT
|
AutoGated
|
White Phosphor
|
FOM
|
| G2+ |
Optional
|
Optional
|
>1250
|
|
1600
|
|||
|
|
|
|
|
| G3 |
Optional
|
Optional
|
1800
|
|
2000
|
|||
|
2400
|
|||
|
2400+
|
|||
|
|
|
|
|
| Echo |
Included
|
Optional
|
2000
|
|
2000+
|
|||
|
|
|
|
|
| 4G |
Included
|
Optional
|
1800+
|
|
2200+
|
|||
|
2300+
|
|
LUX-14
|
|
| Lens System |
27mm. f/1.2
|
| Diopter Adjustment Range |
-6 ... +2
|
|
Proprietary GSCI-VIDID
Premium Optics |
No
|
| Digital Push Button Controls |
Yes
|
| Optical Magnification |
1X
|
| Field Of View (FOV)* |
40°
|
| IR Illuminator |
Yes: Built-in
|
| Bright Light Sensor |
Yes: Built-In
|
| IR LED Indicator |
Yes
|
| Bright Light LED Indicator |
Yes
|
| Low Battery LED Indicator |
Yes
|
| Stow Safety Feature |
Yes
|
| Flip-Up-Off Feature |
Yes
|
| External Power Port |
Optional
|
| Power Source |
1x AA or MVP-240
|
| Battery Life (AA) |
40 Hours
|
| Battery Life on MVP-240 |
240 Hours
|
| Environmental Protection |
Waterproof
|
| Operating Temperature |
-40°C .. +50°C
|
| Dimensions LUX-14 |
109 x 58 x 51 mm
|
| Dimensions LUX-14L |
104 x 58 x 51 mm
|
| Weight LUX-14 (Body Only) |
202 grams
|
| Weight LUX-14L (Body Only) |
162 grams
|
| Warranty |
7 Years, Limited
|
INCLUDED ACCESSORIES
| 1 | Night Vision Monocular |
| 2 | Rubber Eyecup (Installed on the Device) + Retaining Ring |
| 3 | Demist Shield |
| 4 | Sacrificial Window |
| 5 | Stow Safety Feature (Integrated) |
| 6 | Rubber Daytime Filter with Training Hole (Installed on the device) |
| 7 | Neck Cord |
| 8 | Soft Carrying Pouch |
| 9 | User Manual |
| 10 | Waterproof Hard Case |
| 11 | 7-Year Warranty with Activation Form |
| 12 | Cleaning Kit (3-in-1 Multi-Pen + Soft Cleaning Cloth) |
OPTIONAL EQUIPMENT
| A | GSCI-VIVIDLightweight High-Performance Front and Rear Optics (Model Name: LUX-14L) |

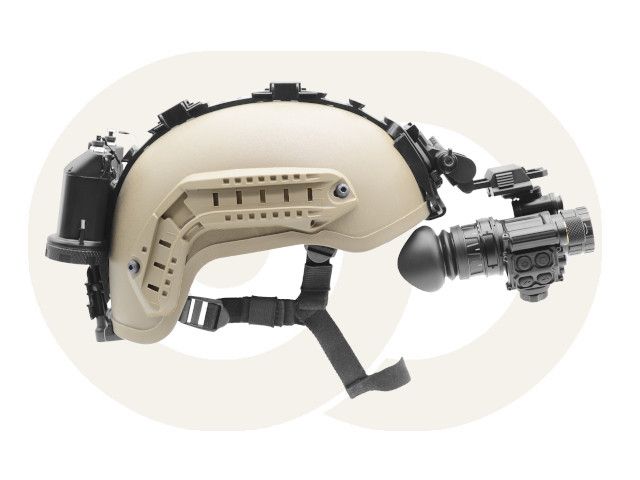

| B | Advanced Helmet Harness HMH-1 for MICH / ACH Helmets |
| C | Adjustable Dual-Quick Release Weapon Mount DQRM-14 |

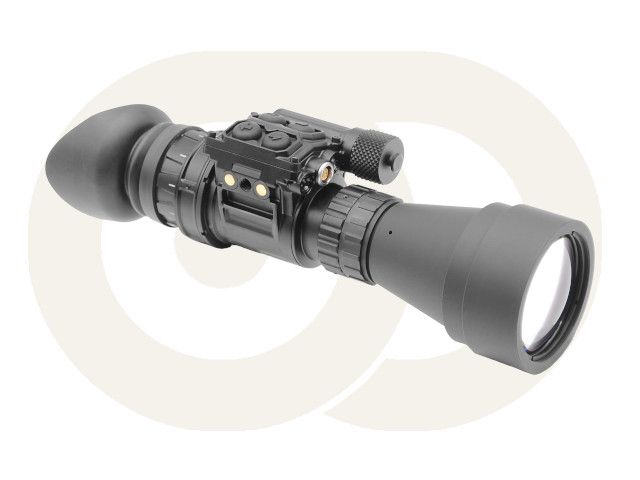

| D | 3X Magnification Afocal Add-On Objective Lens SL-3: Snap-On or Screw-In |
| E | 5X Magnification Afocal Add-On Objective Lens SL-5: Snap-On or Screw-In |
| F | Smartphone Camera Adapter CAS-14 |
| G | Universal Multi-Voltage Battery Pack MVP-240 (for models with external power port only) |
| H | MTAR™-HUD Multi-Task Heads Up Display with Video Recorder, GPS and 9-Axis Readings. |
| I | Tactical Infrared Illuminator IR-250S. Kit Includes IR-250S (850nm), Remote Control, Picatinny Mount |
