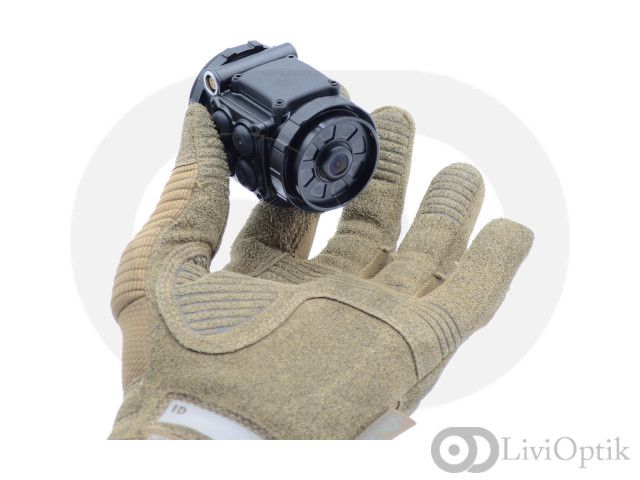

MTAR™-HUD-DT | Core unit with Compact Eyepiece external thread
[Code: NVAR-14DT]
MTAR™-HUD-DT model, Core unit with Compact Eyepiece external thread .
No Eyepiece included.

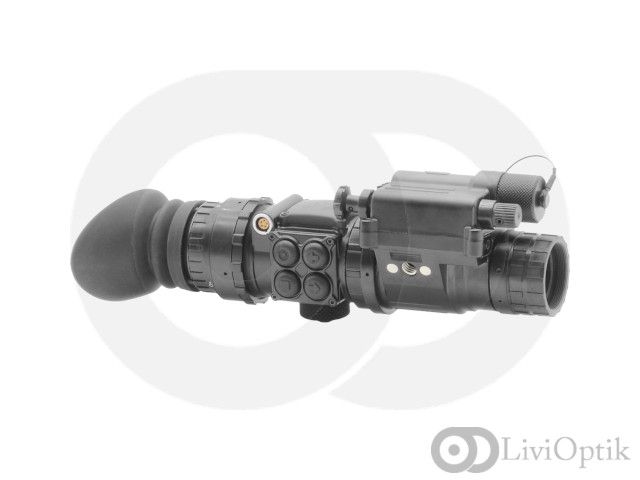

Compatibility: PVS-14C, PVS-14CL, LUX-14™, LUX-14™L
Multi-Task Augmented Reality Heads Up Display MTAR™-HUD.
MTAR™-HUD core that provides operators with an array of advanced features, including GPS, Compass, Rangefinder, Inclinometer and Video Recorder.
KEY FEATURES:
Solitary Use or Together with Most Monocular NVDs
On-Screen Display Brings Data Directly to the User’s Eye
Enhances Reconnaissance and Maneuvering Experience
Increases Mobility and Situational Awareness in the Field
Rapid Target Acquisition
Green Phosphor/White Phosphor Switchover
Synchronized Compass and GPS
Concurrent Video Recording and Streaming
Compact, Rugged and Lightweight Design
Handheld, Head-, Helmet-, Weapon-Mountable
MTAR™-HUD Specifications
-
Video Streaming Options: Video-In / Video-Out
-
Fast Frame Rate: 50 fps
-
MULTIPHOSHOR: IIT Independent: White/Green
-
Colour Modes: Auto, Colour, WP, GP
-
GPS: Degrees-Minutes-Seconds, Speed Reading
-
Stow Safety Feature: Yes
-
Stadiametric Rangefinder: Yes
-
Sensitivity Control: Auto / Manual
-
Brightness Control: Manual
-
Memory: Removable 32microsSD card
-
External Power Port: Yes
-
Power Source: 1x CR123 or MVP-240™
-
Environment Protection: Waterproof
-
Operating Temperatures: -35°C .. +60°C
-
Dimensions: 70 x 50 x 58 mm
-
Weight: Less than 135 grams
-
Warranty: 7 years
STANDARD EQUIPMENT:
MTAR™-HUD Core Unit
32GB microSD Card and SD Adapter
Set of Cables (USB Power Cable, Video-In/Out Cable)
Cleaning Kit (3-in-1 Multi-Pen + Soft Cleaning Cloth)
User Manual and Quick Reference Guide
7-Year Warranty with Activation Form
Soft Carrying Pouch
Waterproof Hard Case
