Mark 5HD | 7-35x56 | M5C3 | Tremor3 illuminated | FFP
[Code: 12888]
Specifications
| Adjustable Parallax |
Side Focus
|
| Battery Type |
CR2032
|
| BDC Dial Included |
No
|
| Custom Dial Compatible |
Yes
|
| Daylight Bright Illumination |
No
|
| Custom Dial System (CDS) |
No
|
| Elevation Adjustment Type |
M5C3
|
| Electronic Reticle Level |
No
|
| Guard-ion Lens Coating |
No
|
| Locking Dial |
Yes
|
| Magnification Type |
Variable
|
| Revolution Indicator |
Yes
|

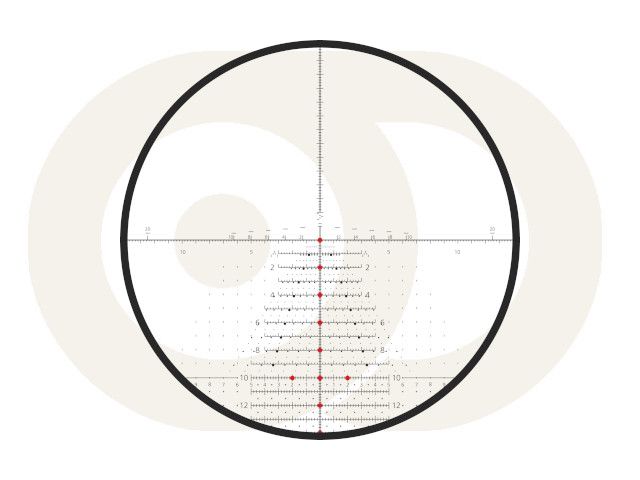

| Reticle |
Illum. FFP Tremor 3
|
| Rezero Type |
Set Screw
|
| Reticle Type |
Illuminated
|
| Adjustable Objective |
No
|
| Switch Type |
Dial
|
| Windage Adjustment Type |
Capped
|
| Weight (oz) |
33
|
| Elevation Adjustment Value per Click |
0.1Mil
|
| Elevation Adjustment Range (MOA) |
100
|
| Elevation Adjustment Range (MIL) |
29
|
| Elevation Adjustment Range (cm @ 100m) |
291
|
| Elevation Adjustment Per Revolution |
10.5 MIL
|
| Elevation Dial Travel Limit |
30MIL
|
| Windage Adjustment Value per Click |
0.1Mil
|
| Windage Adjustment Range (MOA) |
50
|
| Windage Adjustment Range (MIL) |
15
|
| Windage Adjustment Range (cm @ 100m) |
145
|
| Windage Adjustment Per Revolution |
10 MIL
|
| Magnification Max |
35
|
| Magnification Min |
7
|
| Objective Lens Diameter (mm) |
56
|
| Linear FOV Low Mag (ft@100yds) |
14.7
|
| Linear FOV High Mag (ft@100yds) |
3
|
| Angular FOV Low Mag (Degrees) |
2.8
|
| Angular FOV High Mag (Degrees) |
.6
|
| Eye Relief Low Mag (in) |
3.6
|
| Eye Relief High Mag (in) |
3.8
|
| Minimum Parallax-Free Distance (yd) |
50
|
| Battery Life (hr), Low Intensity |
1800
|
| Battery Life (hr), High Intensity |
96
|
| Number of Illum Settings |
7
|
