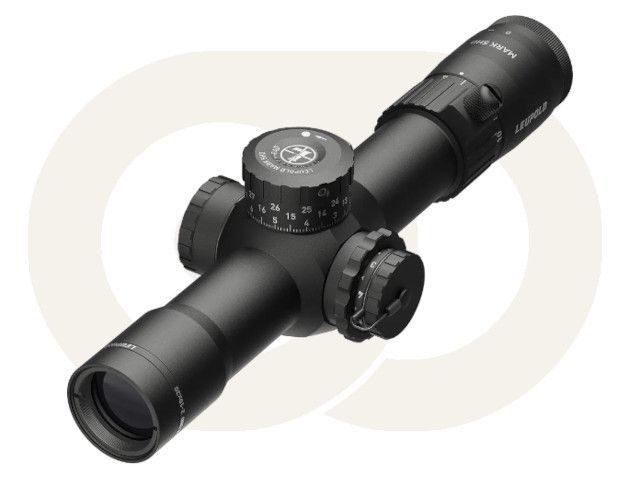

Mark 5HD | 2-10x30 | M5C3 | TMR Illuminated | FFP
[Code: 15015]
SPECIFICATIONS:
Adjustable Parallax: Side Focus
Adjustable Objective: No
Elevation Adjustment Type: M5C3
Locking Dial: Yes
Revolution Indicator: Yes
Rezero Type Set Screw
Windage Adjustment Type: Capped
Custom Dial System (CDS): No
BDC Dial Included: No
Reticle Illum. FFP TMR (Mk)
Magnification Type: Variable
Battery Type: CR2032
Switch Type: Dial
Illuminated: Yes
Nightvision Compatible
Illumination: Yes
Daylight Bright Illumination: No
Electronic Reticle Level: No
Guard-ion Lens Coating: No
Weight (oz) 24
Elevation Adjustment Value per Click 0.1Mil
Elevation Adjustment Range (MOA) 165
Elevation Adjustment Range (MIL) 48
Elevation Adjustment Range (cm @ 100m) 480
Elevation Adjustment Per Revolution 10.5 MIL
Elevation Dial Travel Limit: 30MIL
Windage Adjustment Value per Click: 0.1Mil
Windage Adjustment Range (MOA): 80
Windage Adjustment Range (MIL): 23
Windage Adjustment Range (cm @ 100m): 230
Windage Adjustment Per Revolution: 10 MIL
Magnification Max: 10
Magnification Min: 2
Objective Lens Diameter (mm): 30
Linear FOV Low Mag (ft@100yds): 52.9
Linear FOV High Mag (ft@100yds): 10.5
Angular FOV Low Mag (Degrees): 10
Angular FOV High Mag (Degrees): 2
Eye Relief Low Mag (in): 3.6
Eye Relief High Mag (in): 3.7
Minimum Parallax-Free Distance (yd): 40
Battery Life (hr), Low Intensity: 1800
Battery Life (hr), High Intensity: 96
Number of Illum Settings: 7
