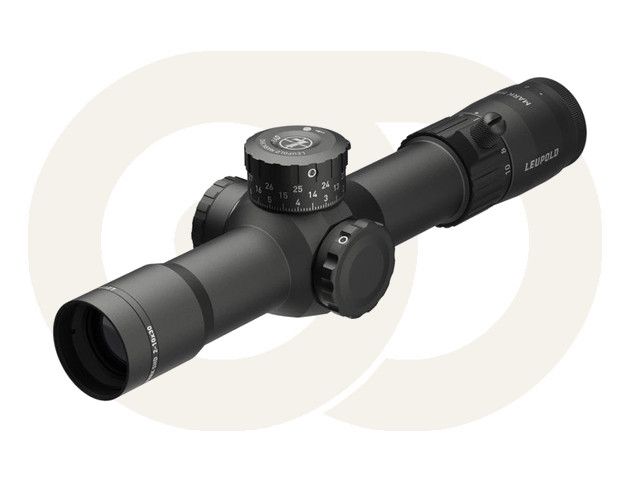

Mark 5HD | 2-10x30 | M5C3 | TMR | FFP
[Code: 15014]
Specification
| Elevation Adjustment Value per Click |
0.1Mil
|
| Elevation Adjustment Range (MOA) |
165
|
| Elevation Adjustment Range (MIL) |
48
|
| Elevation Adjustment Range (cm @ 100m) |
480
|
| Elevation Adjustment Per Revolution |
10.5 MIL
|
| Elevation Dial Travel Limit |
30MIL
|
| Windage Adjustment Value per Click |
0.1Mil
|
| Windage Adjustment Range (MOA) |
80
|
| Windage Adjustment Range (MIL) |
23
|
| Windage Adjustment Range (cm @ 100m) |
230
|
| Windage Adjustment Per Revolution |
10 MIL
|
| Magnification Max |
10
|
| Magnification Min |
2
|
| Objective Lens Diameter (mm) |
30
|
| Linear FOV Low Mag (ft@100yds) |
52.9
|
| Linear FOV High Mag (ft@100yds) |
10.5
|
| Angular FOV Low Mag (Degrees) |
10
|
| Angular FOV High Mag (Degrees) |
2
|
| Eye Relief Low Mag (in) |
3.6
|
| Eye Relief High Mag (in) |
3.7
|
| Minimum Parallax-Free Distance (yd) |
40
|
| Adjustable Parallax |
Side Focus
|
| Adjustable Objective |
No
|
| Elevation Adjustment Type |
M5C3
|
| Locking Dial |
Yes
|
| Revolution Indicator |
Yes
|
| Rezero Type |
Set Screw
|
| Windage Adjustment Type |
Capped
|
| Custom Dial System (CDS) |
No
|
| BDC Dial Included |
No
|
| Reticle Type |
First Focal Plane
|

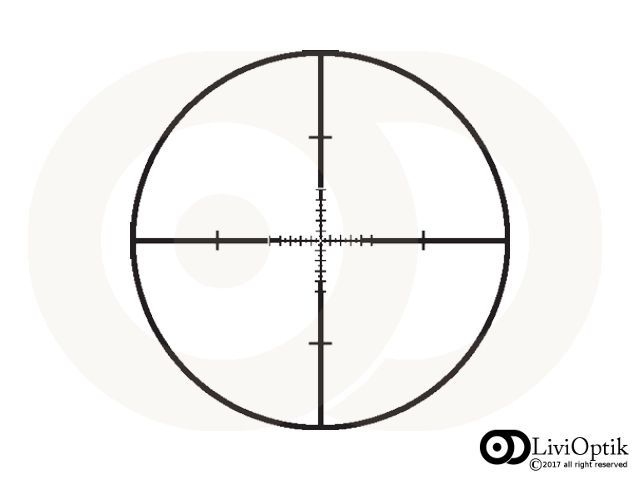

| Reticle |
TMR
|
| Magnification Type |
Variable
|
| Illuminated |
No
|
| Nightvision Compatible Illumination |
No
|
| Daylight Bright Illumination |
No
|
| Motion Sensor Technology (MST) |
No
|
| Electronic Reticle Level |
No
|
| Guard-ion Lens Coating |
No
|
| Weight (oz) |
24
|
Ask information about Mark 5HD | 2-10x30 | M5C3 | TMR | FFP
