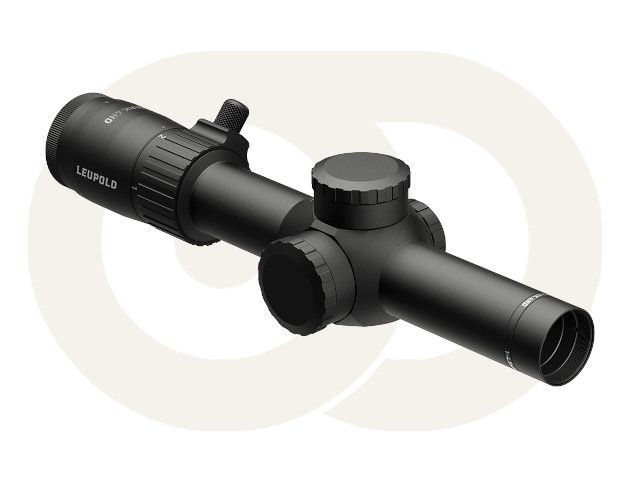

Mark 4HD | 1-4.5x24 | FireDot BDC Illuminated | SFP
[Code: 15158]
At the heart of the Mark 4HD series is Leupold's Professional-Grade Optical System. This system guarantees exceptional clarity, light transmission, and color fidelity. The introduction of an advanced side focus allows for sharp, clear images from 25 yards all the way out past 1,000 yards, ensuring that no detail goes unnoticed. New oversized numbers on the M5C3 elevation dial are easy to see and a tactile ZeroLock windage dial guarantees secure, precise horizontal adjustments (on select models). Whether you're dialing in for a long-range shot or tracking a target in close quarters, you can count on the Mark 4HD to provide you with clear visuals and repeatable accuracy.
Specifications
| Badge |
New
|
| Battery Type |
CR2032
|
| BDC Dial Included |
No
|
| Custom Dial Compatible |
Yes
|
| Daylight Bright Illumination |
Yes
|
| Custom Dial System (CDS) |
No
|
| Elevation Adjustment Type |
Capped
|
| Guard-ion Lens Coating |
No
|
| Locking Dial |
No
|
| Magnification Type |
Variable
|
| Reticle Focal Plane |
Second Focal Plane
|
| Revolution Indicator |
No
|
| Reticle |
Illum. FireDot Bullet Drop
|
| Rezero Type |
Set Screw
|
| Reticle Type |
Second Focal Plane
|
| Adjustable Objective |
No
|
| Side Focus |
No
|
| Switch Type |
Push Button
|
| Windage Adjustment Type |
Capped
|
| Weight (oz) |
18
|
| Elevation Adjustment Value per Click |
1/4MOA
|
| Elevation Adjustment Range (MOA) |
165
|
| Elevation Adjustment Range (MIL) |
48
|
| Elevation Adjustment Range (cm @ 100m) |
480
|
| Elevation Adjustment Per Revolution |
25 MOA
|
| Elevation Dial Travel Limit |
71.5MOA
|
| Windage Adjustment Value per Click |
1/4MOA
|
| Windage Adjustment Range (MOA) |
165
|
| Windage Adjustment Range (MIL) |
48
|
| Windage Adjustment Range (cm @ 100m) |
480
|
| Windage Adjustment Per Revolution |
25 MOA
|
| Magnification Max |
4.5
|
| Magnification Min |
1
|
| Objective Lens Diameter (mm) |
24
|
| Linear FOV Low Mag (ft@100yds) |
118.8
|
| Linear FOV High Mag (ft@100yds) |
25.2
|
| Angular FOV Low Mag (Degrees) |
21.6
|
| Angular FOV High Mag (Degrees) |
4.8
|
| Eye Relief Low Mag (in) |
3.7
|
| Eye Relief High Mag (in) |
3.9
|
| Fixed Parallax-Free Distance (yd) |
150
|
| Battery Life (hr), Low Intensity |
1600
|
| Battery Life (hr), Medium Intensity |
1000
|
| Battery Life (hr), High Intensity |
300
|
| Number of Illum Settings |
8
|
