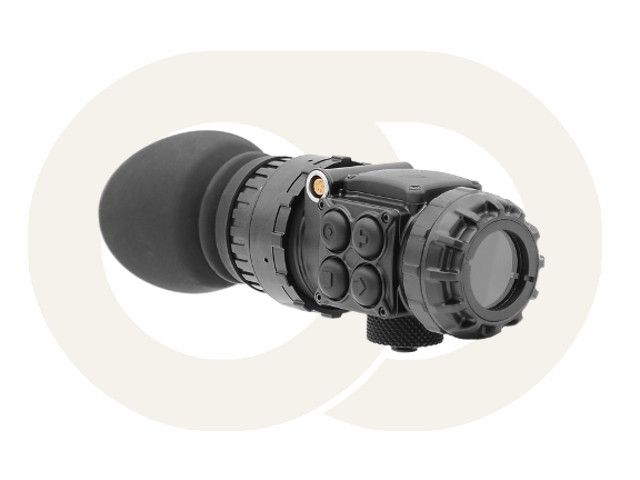

MTAR™-HUD | Multi-Task Augmented Reality Heads Up Display
[Code: MTARHUD]
Home »
Lens » MTAR™-HUD | Multi-Task Augmented Reality Heads Up Display
The first of its kind -MTAR™-HUD is a Multi-Task Augmented Reality Heads Up Display with unrivaled functionality.
Millions of Night Vision Devices were manufactured and many are in still service since an Image Intensifier Tube was invented. Now with the help of the MTAR™-HUD most of these devices can be upgraded to enable features they were missing.
Just for a small cost MTAR™-HUD supercharges your night vision device by displaying an array of vital readings for maximum situationalawareness. Each of these data elements can be displayed or hidden through the device’s menu to show an operator only the information he needs at a particular instance. Such user customization reduces the operator’s distractions and helps focus on mission objectives.
Stand-alone functionality is just one of the many advantages of the system, however, the real advantage behind the design is to transform a conventional night vision device into a full-scale tactical surveillance, even weapon mountable station. The GPS module allows the operator to identify and display their location, and the unit significantly enhances situational awareness referring to pitch-roll-yaw readings. Recordings can be re-produced and analyzed from the built-in digital video recorder. All of the data is displayed on-screen of a night vision device in an informative, and non-distractive way.
The MTAR™-HUD is the strategic choice when it comes to upgrading the existing fleet of night vision devices of virtually all makes and models, especially the widely popular PVS-14.
KEY FEATURES
Revolutionary Multi-Phosphor Feature
Precise GPS Coordinates
Digital Video Recorder (32GB microSD Card included)
Adjustable Electronic Reticles
Stadiametric Rangefinder
Compass Reading: Azimuth
Inclinometer Readings: Pitch and Roll
Specifications |
Video Streaming Options |
Video-In/Video-Out
|
Fast Frame Rate |
50fps, no lags or delays.
|
MULTIPHOSPHOR |
White Phosphor/ Green Phosphor, IIT-independent
|
Colour Modes |
Auto, Full Colour, Grayscale, WP/GP
|
Compass |
Yes: Magnetic and Gyro-Compass
|
GPS |
Yes: Degrees-Minutes-Seconds, Speed Reading
|
Stow Safety Feature |
Yes
|
Stadiametric Rangefinder |
Yes
|
Auto Power Off |
Yes, Programmable
|
Internal Display |
0.6-Inch Diagonal, AMOLED, Colour 800x600
|
Brightness Control |
Manual
|
Sensitivity |
Automatic/Manual
|
Memory |
32GB MicroSD removable card.
|
Power Source |
1pc CR123, battery not included
|
External Power Port |
4VDC .. 15VDC
|
Battery Life |
Up to 2.5 Hours with CR123 Battery
|
Dimensions |
70x50x58mm
|
Mass |
<135 grams
|
Operating Temperature |
-35°C .. +60°C
|
Storage Temperature |
-40°C .. +70°C
|
Mechanical and Optical Fitting |
Standard AN/PVS-14 compatible
|
Immersion |
IP67, purging ready
|
Environmental |
MIL-STD-810G
|
