Tactical Illuminator 30TS | 940nm | 30°
[Code: 30TS1930]

Tactical Illuminator 30TS | 940nm | 30°
Tactical Illuminator 30TS | 940nm | 30° Tactical Illuminator 30TS | 940nm | 30° Tactical Illuminator 30TS | 940nm | 30°

Click here to get a quote

COMPLETELY COVERT 940nm INFRARED

Tactical 940nm IR lights are designed to provide fully invisible IR illumination, for law enforcement, military, traffic and railroad applications where red light can be interpreted as a signal.

FEATURES
Light – Infrared 940nm (fully covert)
Energy Efficient – Power Consumption 30 Watts
Available in Three Angles – 110˚, 60˚ or 30˚
IO Ports for Seamless Camera Sync
Day/Night Sensor
Rugged Construction – IP67 Outdoor Rated
Vandal Resistant

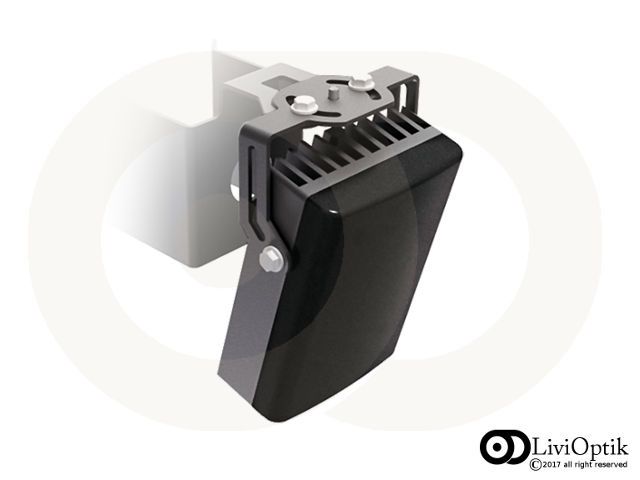

Includes Pan/Tilt U Bracket
Simple Installation, Easy integration
Designed and Manufactured in the USA

Wavelength
940nm (fully-covert) Infrared
Angle 30°
Range 67m
HFOV 31m
Angle 60°
Range 37m
HFOV 37m
Angle 110°
Range 24m
HFOV 40m
Input Power
(12-24) V DC Polarity Sensitive
Power Consumption
30 Watts
Operating Temperature
-50°C...+60°C

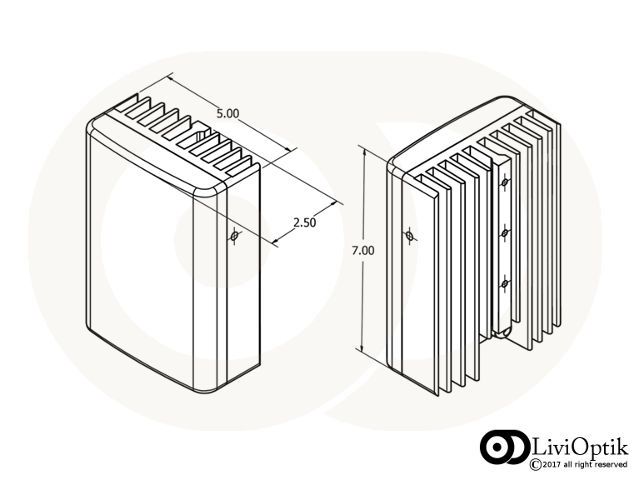

Dimensions
127 x 178 x 64 mm
Weight
1.4 kg
Environmental
IP 67
Mounting
Pan/Tilt U-bracket Included


IMPORTANT

While 940nm wavelength IR lights are completely covert and invisible, please consider the following points:

  • Not all cameras are sensitive to (can see) 940nm wavelength IR light.
  • Even if the camera is sensitive to the 940nm wavelength, it will have about 40-60% less range vs. 850nm which is the standard wavelength for IR lights.

All 940nm IR lights are considered custom, illuminators cannot be returned.


Buy also a special accessory for Tactical Illuminator 30TS | 940nm | 30°
