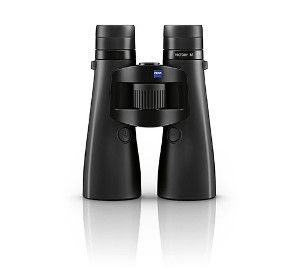

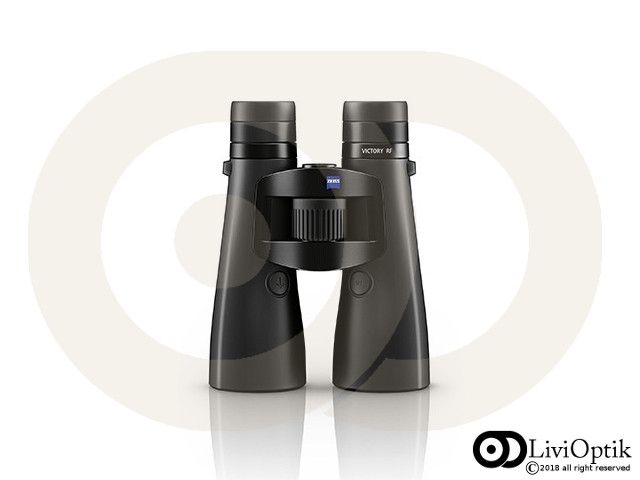

Victory RF | 8x54T*
[Code: 421840]
The Victory Rangefinder System is a laser rangefinder with an integrated real-time ballistics computer. The consideration of all relevant factors and customisation with the aid of the ZEISS Hunting App ensure precisely placed shots at any distance.
| Magnification |
8x
|
10x
|
| Effective lens diameter |
54 mm
|
|
| Exit pupil diameter |
6,8 mm
|
5,4 mm
|
| Twilight factor |
20,8
|
23,2
|
| Field of view |
120 m
|
110 m
|
| Subjective angle of view |
55° Ww
|
63° Ww
|
| Close-up setting limit |
3,5 m
|
|
| Diopter adjustment range |
+/- 3 dpt.
|
|
| Eye relief |
14 mm
|
|
| Pupil distance |
58,5 - 76mm
|
|
| Lens type |
FL
|
|
| Prism system |
Abbe- König
|
|
| Coating |
LotuTec®/ T*
|
|
| Nitrogen filling |
yes
|
|
| Waterproof |
100 mbar
|
|
| Operating temperature1 |
-25/+63°C
|
|
| Length |
195 mm
|
|
| Width with an eye spacing of 65 mm |
136 mm
|
|
| Weight |
1.095 g
|
1.115 g
|
| Measuring range |
15 - 2.300 m
|
|
| Measuring accuracy2 |
1 to 600/ 0,5% over 600 m
|
|
| Measuring duration |
<0,3 Sec.
|
|
| Laser wavelength |
905 nm
|
|
| Laser beam divergence |
1,6 x 0,5 mrad
|
|
| Battery |
1 x 3V Type CR 2
|
|
| Battery life at +20°C |
>2.500x
|
|
Ask information about Victory RF | 8x54T*
