ZF 6-24X56 | MilDot | SF
[Code: 10139126]
30mm tube
Specifically designed for long-range targeting
Precise targeting with bullet drop compensation
Extremely robust aluminum housing
|
Specification
|
|
|
Magnification
|
6x–24x
|
|
Objective Lens Diameter, mm
|
56
|
|
Field of View (FOV) @ 1000m, m
|
61–17
|
|
Exit Pupil, mm
|
9.7–2.3
|
|
Tube Diameter, mm
|
30
|
|
Resolution, arc seconds
|
min. 3
|
|
Transmission, %
|
approx. 88
|
|
Impact Point Correction
|
0.5 mrad (0.5 cm @ 100 m)
|
|
Max. Adjustment Path
(Elevation/Azimuth), cm/100 m
|
± 80 / ± 35
|
|
Parallax Compensation, m
|
50 to infinity
|
|

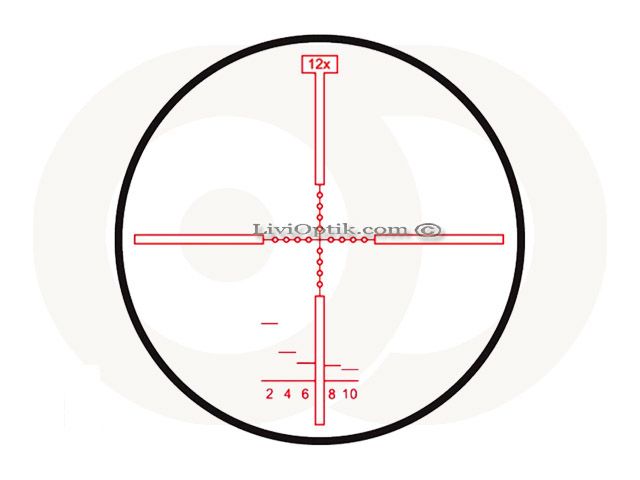

Reticle
|
Illuminated Mil-Dot
|
|
Reticle Image Plane
|
Second Focal
|
|
Distance Between Reticle Dots, cm/100 m
|
10
|
|
Distance Between the Centering Lines, m/100 m
|
1
|
|
Reticle Illumination
|
Red
|
|
Automatic Reticle Illumination Shut/Off
|
After 3 hours
|
|
Low Battery Display
|
Optical, after activation
of reticle illumination
|
|
Power Supply
|
3V CR 2032
|
|
Dimensions (L x W x H), mm
|
385 x 94 x 78
|
|
Weight, g
|
850
|
Accessories:
Screwable ARD
Clampable ARD
Polarizing filter
Screwable Sunshade
Clampable Sunshade
Eyeguard
Yellow Filter
