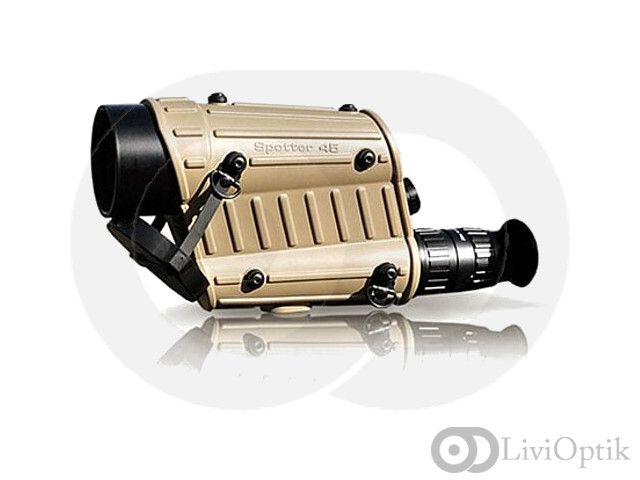

Spotter 45-S | 15-45x72 | H32
[Code: 10204910]
Three key features make the 15–45x72 spotting scope, or Spotter 45, from Airbus DS Optronics the ideal instrument for the observation and identification of objects, and target hit monitoring: high magnification (15x to 45x), a 72 mm lens and a H32 reticle with continuously adjustable illumination whose size changes congruent with the magnification level.
| SPOTTER 45 |
|
| Magnification |
15 x - 45 x
|
| Lens diameter |
72 mm
|
| Exit pupil |
4.8 - 1.6 mm
|
| Eye relief |
30.5 mm
|
| Field of view (at 1000 m) |
49 - 19 m
|
| Dioptre adjustment |
+2 to -3 dpt
|
| Transmission |
85,00%
|
| Reticle/laser protection |
yes / optional
|
| Reticle illumination |
red
|
| Automatic reticle illumination shut off |
after 3 hours (adjustable according to customer needs)
|
| Low battery display |
optical, illuminated reticle pulses after it is turned on
|
| Power supply |
3 V CR 2032 to -20 °C button cell; alternatively: 3 V BR 2032 to -40 °C
|
| Dimensions (L x W x H ) |
350 x 90 x 165 mm
|
| Weight |
1770 g
|
| Colour |
tan
|
| Front filter thread |
M 73 x 0.75
|
| Tripod connector |
3/8“ thread with locking pin, optional adapter for 1/4“
|
| Environmental test |
MIL-STD-810G, DIN ISO 9022 (excerpt)
|
| Features |
Bright, high-contrast image at all magnification levels; Continuously adjustable illumination;
Radical in the first focal plane;
Different reticles available;
Compact design for concealed observations |
Ask information about Spotter 45-S | 15-45x72 | H32
