SpecterDR™ 1x-4x | 5.56 NATO | CX5395 reticle
[Code: DFV4.B146C10]
The ELCAN SpecterDR 1x/4x comes equipped with integrated Picatinny rails, ambidextrous magnification throw levers, improved battery covers, and hard-wearing CERAKOTE® performance finishes in Black or Flat Dark Earth (FDE).
The SpecterDR 1-4 offers the best single solution for both Medium Range and CQB engagements and is designed to withstand the rigors of modern professional use.
The SpecterDR 1-4 offers the best single solution for both Medium Range and CQB engagements and is designed to withstand the rigors of modern professional use.
| Magnification |
4x / 1x
|
| Length |
153mm nominal
|
| Width |
68mm nominal
|
| Height |
72mm nominal
|
| Weight |
655g nominal
|
| Reticle |
Dual-thickness ballistic crosshair with user-selectable
red dot, VSOR rangefinder, and area fire circles. |
| Aiming Dot diameter |
1.5 MoA @ 4x, 6 MoA @ 1x
|
| Ballistic correction: |
Dual-thickness ballistic crosshair with user-selectable
red dot, VSOR rangefinder, and area fire circles. |
| DFOV14-C1: |
CX5395 reticle:
100-600m for 5.56 carbine,
700-1000m for 5.56mm LMG
|
| DFOV14-C2: |
CX5396 reticle:
100-600m for 7.62 rifle,
700-1000m for 7.62mm LMG
|
| CQB offset |
<44mm @ 60m
|
| Field of View |
26 deg @ 1x, 6.5 deg @ 4x
|
| FoV @4x |
11.4 m @ 100 m (34.2 ft @ 100 yds)
|
| FoV @1x |
48.8 m @ 100 m (146.3 ft @ 100 yds)
|
| Illumination source |
Battery-powered LED
|
| Crosshair illumination |
5 settings, AN/PVS-22 compatible
|
| Red Dot illumination |
5 settings, AN/PVS-22 compatible
|
| Eye Relief |
70mm
|
| Entrance pupil |
32mm
|
| Exit pupil |
8mm
|
| Nominal focus |
150m @ 4x, 70m @ 1x
|
| Fixed focus range |
20m to infinity
|
| Battery type |
CR2032 (3v Lithium)
|
| Battery life |
382hrs on max RD/reticle setting, 1730hrs on second highest RD setting, 1208 hrs on second highest reticle setting
|
| Exterior finish |
CERAKOTE® performance finish in Black or Flat Dark Earth (FDE)
|
| Adjustment resolution |
0.5 minute of angle
|
| Adjustment range |
120 minutes of angle
|
| Base requirement |
Mil-Std-1913 ‘Picatinny Rail’
|
| Attachment |
A.R.M.S. Levers
|
| Shockproof: |
450 g’s
|
Optional Accessories:

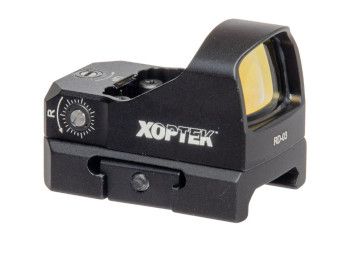

XOPTEK™ Micro Reflex Sight
Tenebraex Scope Clear Cover fits the Ocular and Objective side
Tenebraex Scope Amber Cover fits the Ocular and Objective side
Tenebraex Scope Cover fits the Ocular and Objective side
Tenebraex ARD
Ask information about SpecterDR™ 1x-4x | 5.56 NATO | CX5395 reticle
