VX-3HD | 6.5-20x50 | CDS-T | Fine Duplex
[Code: 13630]

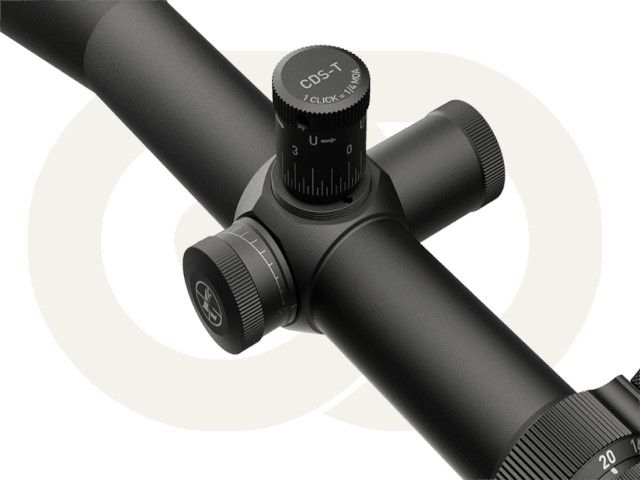

The VX®-3HD 6.5-20x40mm delivers legendary performance in an incredibly tough and lightweight package. It's the perfect workhorse for taking mid to long-range shots from the firing line. Everything we put into your VX-3HD is there to help you dominate the competition. With its CDS-T dial, you'll get access to the entire adjustment range of your scope in precise ¼-MOA increments. And like all Leupold riflescopes, it's designed, machined, and assembled in the USA and guaranteed for life.
Specifications
| Badge |
New
|
| Adjustable Parallax |
Side Focus
|
| BDC Dial Included |
No
|
| Custom Dial Compatible |
Yes
|
| Daylight Bright Illumination |
No
|
| Elevation Adjustment Type |
CDS-T
|
| Electronic Reticle Level |
No
|
| Guard-ion Lens Coating |
No
|
| Illuminated |
No
|
| Locking Dial |
No
|
| Magnification Type |
Variable
|
| Motion Sensor Technology (MST) |
No
|
| Nightvision Compatible Illumination |
No
|
| Reticle Focal Plane |
Second Focal Plane
|
| Revolution Indicator |
Yes
|
| Reticle |
Fine Duplex
|
| Rezero Type |
Set Screw
|
| Reticle Type |
Second Focal Plane
|
| Adjustable Objective |
No
|
| Weight (oz) |
20.8
|
| Elevation Adjustment Value per Click |
1/4MOA
|
| Elevation Adjustment Range (MOA) |
65
|
| Elevation Adjustment Range (MIL) |
19
|
| Elevation Adjustment Range (cm @ 100m) |
160
|
| Elevation Adjustment Per Revolution |
15 MOA
|
| Elevation Dial Travel Limit |
Total Scope Travel
|
| Windage Adjustment Value per Click |
1/4MOA
|
| Windage Adjustment Range (MOA) |
55
|
| Windage Adjustment Range (MIL) |
16
|
| Windage Adjustment Range (cm @ 100m) |
160
|
| Windage Adjustment Per Revolution |
15 MOA
|
| Magnification Max |
20
|
| Magnification Min |
6.5
|
| Objective Lens Diameter (mm) |
50
|
| Linear FOV Low Mag (ft@100yds) |
14.1
|
| Linear FOV High Mag (ft@100yds) |
5.8
|
| Angular FOV Low Mag (Degrees) |
2.7
|
| Angular FOV High Mag (Degrees) |
1.1
|
| Eye Relief Low Mag (in) |
4.4
|
| Eye Relief High Mag (in) |
3.6
|
| Minimum Parallax-Free Distance (yd) |
75
|
Ask information about VX-3HD | 6.5-20x50 | CDS-T | Fine Duplex
