10-60x56 LPI | CW | DTII+ -STII | M1FL Reticle
[Code: 160.602.Q2I6]

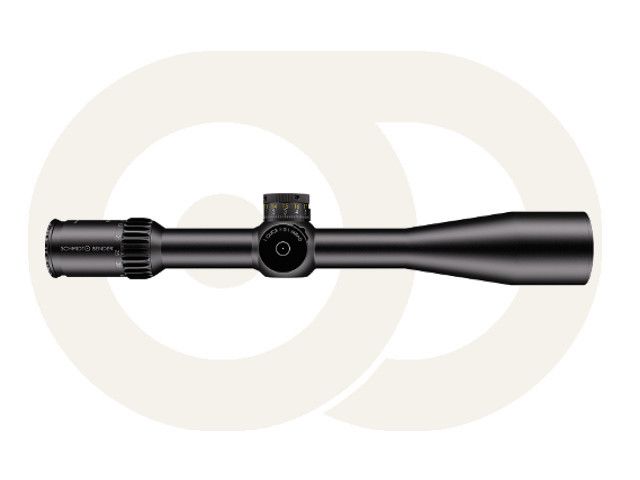

The new riflescope for all who value maximum precision and accuracy. Whether Bench Rest, F-Class, Long Range or Extreme Long Range, the new 10-60x56 is especially developed for competition shooting.

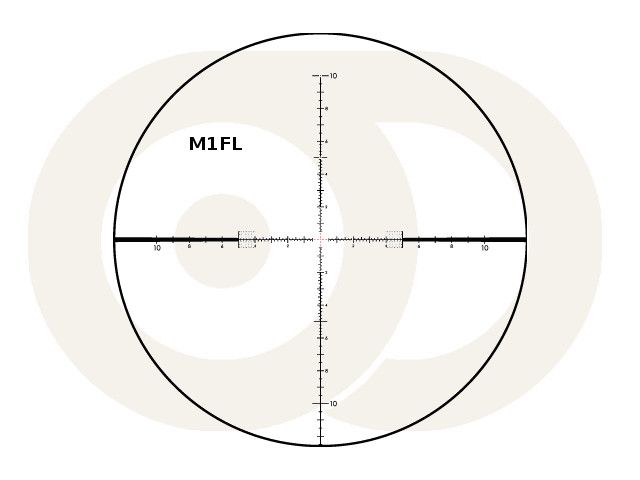

The 10-60x56 is the latest development of our 6x zoom optics designs and impresses with powerful features: The large field of view, together with the generous exit pupil, allows comfortable target acquisition and sets a new benchmark. The 56 mm objective lens diameter with a light transmission of over 90 % provides a clear, bright and high contrast image even at extreme magnification. The “LPI” enables the use of 11 step illumination and the 20 m to infinity parallax adjustment with one simple handgrip. The riflescope is equipped with a new mrad-based M1FL competition reticle in first focal plane.
| Magnification |
10–60
|
|
| Exit pupil-Ø (mm) |
5.6–1.0
|
|
| Field-of-view (m/100 m) |
4.4–0.8
|
|
| Length (mm) |
442
|
|
| Weight (g) |
980
|
|
| Mount system |
Ring mount
|
|
| Main tube-Ø (mm) |
34
|
|
| Parallax adjustment (m) |
20 to ∞
|
|
| Reticles |
M1FL
|
|
| Focal Plane |
1
|
|
| Illumination |
11 settings
|
|
| Turrets (Elevation /Windage) |
DT II+
MTC LT /
ST II ZC LT
|
MT II
MTC LT /
DT II+ ZC LT
|
| Turret rotation |
cw/ccw
|
|
| Click value |
0.1 MRAD
|
0.5 cm/100 m
|
| Adjustment range elevation |
23,5 MRAD
|
235 cm/100 m
|
| Adjustment range windage |
± 6 MRAD
|
± 68 cm/100 m
|
Ask information about 10-60x56 LPI | CW | DTII+ -STII | M1FL Reticle
