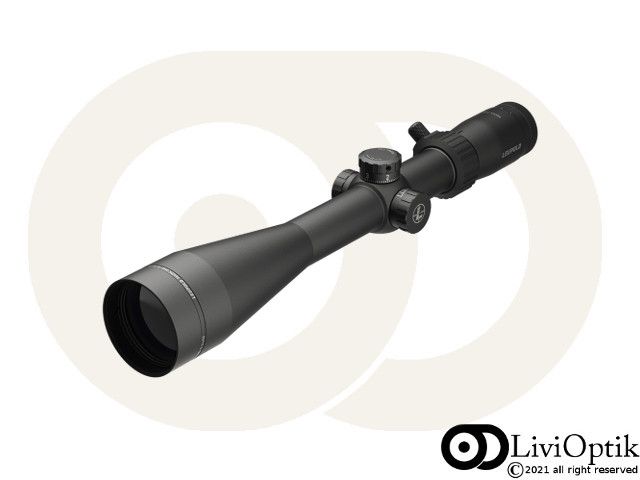

Mark 3HD | 8-24x50 | P5 | Side Focus | TMR
[Code: 13640]
When you’re at the range or in competition, you never know what distance you’ll find yourself up against. That’s where the Mark 3HD™ 8-24x50mm comes in. With the most versatile magnification range of the entire series, the 8-24x gives you the flexibility to dominate on any stage or in any situation.
| Finish |
Matte
|
| Reticle Focal Plane |
Second Focal Plane
|
| Elevation Adjustment Type |
P5
|
| Rezero Type |
Set Screw
|
| Windage Adjustment Type |
Capped
|
| Reticle Type |
Second Focal Plane
|
| Reticle |
TMR
|
| Light Management System |
Elite Optical System
|
| Magnification Type |
Variable
|
| Illuminated |
No
|
| Nightvision Compatible Illumination |
No
|
| Daylight Bright Illumination |
Yes
|
| Weight (oz) |
20.1
|
| Elevation Adjustment Value per Click |
0.1Mil
|
| Elevation Adjustment Range (MOA) |
53
|
| Elevation Adjustment Range (MIL) |
15
|
| Elevation Adjustment Range (cm @ 100m) |
154
|
| Elevation Adjustment Per Revolution |
6 MIL
|
| Elevation Dial Travel Limit |
5.6MIL
|
| Windage Adjustment Value per Click |
0.1Mil
|
| Windage Adjustment Range (MOA) |
51
|
| Windage Adjustment Range (MIL) |
15
|
| Windage Adjustment Range (cm @ 100m) |
154
|
| Windage Adjustment Per Revolution |
5 MIL
|
| Magnification Max |
24
|
| Magnification Min |
8
|
| Objective Lens Diameter (mm) |
50
|
| Linear FOV Low Mag (ft@100yds) |
4.8
|
| Linear FOV High Mag (ft@100yds) |
2.4
|
| Angular FOV Low Mag (Degrees) |
.92
|
| Angular FOV High Mag (Degrees) |
.46
|
| Eye Relief Low Mag (in) |
5.4
|
| Eye Relief High Mag (in) |
3.8
|
